Overlay Network

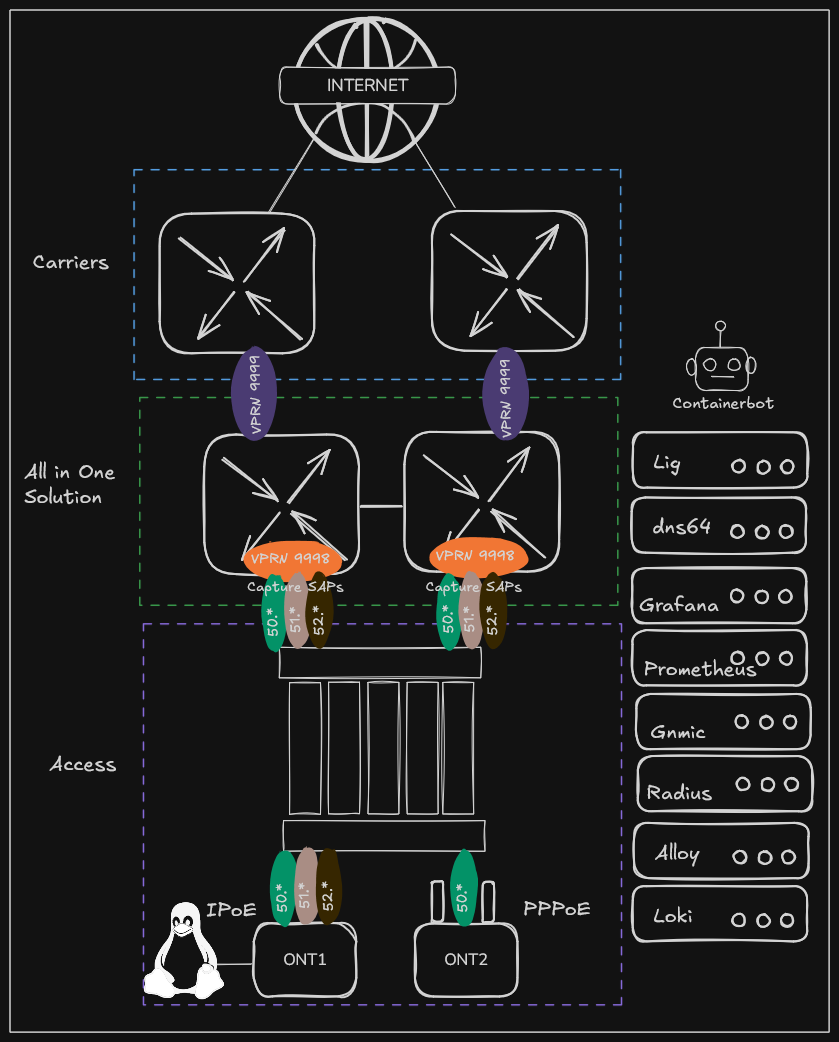

Logical Services Diagram
Description of the Services Layer
The Overlay represents the VPRN and VPLS logical services that operate over the MPLS underlay. The architecture uses two VPRNs (9998 for subscribers and 9999 for Internet/NAT) with bidirectional route-leaking via VPN-IPv4 communities.
VPRNs
VPRN 9998 - VRF Subscriber
Contains all subscriber infrastructure:
- Subscriber Interface "services" with three Group Interfaces
- DHCP Servers (IPv4 + IPv6)
- NAT Inside (CGNAT, NAT64, One-to-One)
- SRRP Instances
- Redundant Interface via SDP
VPRN 9999 - Internet VRF
Contains upstream connectivity:
- Interfaces to Carrier 1 and Carrier 2
- Interface to LIG
- NAT Outside Pools (dtpool, nat64-pool, one-to-one)
- eBGP with Carriers
VLANs and MAC-VRFs scheme
The SR Linux OLT uses MAC-VRFs to bridging between the BNGs and the ONTs:
| MAC-VRF | S-VLAN | C-VLAN | Service | Group Interface |
|---|---|---|---|---|
| bd-50 | 50 | 150 | IPv6-only | ipv6-only |
| bd-51 | 51 | 200 | Dual-Stack | dual-stack |
| bd-52 | 52 | 300 | VIP (IPv4 1:1) | vip |
| bd-srrp | 4094 | None | SRRP Messages | None |
- S-VLAN 50 / C-VLAN 150: IPv6-only service with NAT64 (ipv6-only GI)
- S-VLAN 51 / C-VLAN 200: Dual-Stack service with deterministic CGNAT (dual-stack GI)
- S-VLAN 52 / C-VLAN 300: VIP Service with One-to-One NAT (vip GI)
Service Chaining by Flow
This view summarizes the logical end-to-end path for each service. It is useful for demos, training, and troubleshooting because it ties together access, policy, VPRN/NAT, and upstream forwarding in a single table.
| Service | Encapsulation / Ingress | BNG Processing | Egress | Related ATP |
|---|---|---|---|---|
| ONT1 WAN1 IPv6-only | ONT1 -> OLT bd-50 -> S-VLAN 50 / C-VLAN 150 | Capture-SAP -> GI ipv6-only -> VPRN 9998 -> route-leaking with VPRN 9999 -> NAT64/DNS64 when applicable | Carrier 1 / Carrier 2 -> Internet | NAT64 |
| ONT1 WAN2 Dual-Stack | ONT1 -> OLT bd-51 -> S-VLAN 51 / C-VLAN 200 | Capture-SAP -> GI dual-stack -> VPRN 9998 -> CGNAT for IPv4 + native IPv6 -> VPRN 9999 | Carrier 1 / Carrier 2 -> Internet | Observability |
| ONT1 WAN3 VIP | ONT1 -> OLT bd-52 -> S-VLAN 52 / C-VLAN 300 | Capture-SAP -> GI vip -> VPRN 9998 -> One-to-One NAT -> VPRN 9999 | Carrier 1 / Carrier 2 -> Internet | CGNAT / NAT policies |
| ONT2 WAN1 PPPoE | ONT2 -> OLT bd-50 -> S-VLAN 50 / C-VLAN 150 | PPPoE + RADIUS -> GI ipv6-only -> VPRN 9998 -> NAT64 when applicable -> VPRN 9999 | Carrier 1 / Carrier 2 -> Internet | ESM |
Service Flow Diagrams
ONT1 WAN2 Dual-Stack
ONT2 WAN1 PPPoE
Route Leaking Inter-VPRN
Routes are exchanged between VPRN 9998 and 9999 using BGP VPN-IPv4 with communities:
# Community para rutas del Internet VRF
/configure policy-options community "internet-vrf" member "target:65510:9999"
# Community para rutas del Subscriber VRF
/configure policy-options community "subscriber-vrf" member "target:65510:9998"
Capture SAP
Each Capture-SAP in VPLS intercepts traffic according to S-VLAN and assigns it to the corresponding Group Interface:
# S-VLAN 50 → GI ipv6-only (SRRP 1)
/configure service vpls "capture-sap" capture-sap 1/1/c2/1:50.*
msap-defaults group-interface "ipv6-only"
track-srrp 1
# S-VLAN 51 → GI dual-stack (SRRP 2)
/configure service vpls "capture-sap" capture-sap 1/1/c2/1:51.*
msap-defaults group-interface "dual-stack"
track-srrp 2
# S-VLAN 52 → GI vip (SRRP 3)
/configure service vpls "capture-sap" capture-sap 1/1/c2/1:52.*
msap-defaults group-interface "vip"
track-srrp 3
