11. Lawful Interception and LEA validation

This test validates that the BNG sends intercepted traffic to the LIG/LEA and that both the web UI and the APIs reflect the flows for subscriber ONT-001.

11.0 Select the scenario before starting

Before enabling LI, confirm which scenario you are in:

Scenario	How the subscriber appears on the BNG	Primary WAN for ATP 11	Script
Normal RADIUS	ONT-001	wan2	ont1-subscriber-traffic.sh
LUDB fallback	usually <MAC>|<SAP>	wan1	ont1-subscriber-traffic.sh
PPPoE alternative	ONT-002 / test@test.com	ppp0	ont2-subscriber-traffic.sh

Recommended pre-check:

A:admin@MASTER# show service active-subscribers

Expected result:

• without AAA fallback to LUDB, ONT-001 should appear under its normal alias and the simplest ATP 11 path is wan2
• with LUDB fallback, use the exact active subscriber-id returned by the BNG and keep the whole run on that same WAN

All traffic scripts referenced in this section are located under configs/cbot/scripts/.

Practical rule for li-source:

• before LUDB fallback, the identifier that works consistently is the subscriber alias, for example subscriber "ONT-001"
• after LUDB fallback, that alias may stop resolving and the correct identifier becomes the exact active subscriber-id returned by the BNG, for example 00:d0:f6:01:01:01|1/1/c2/1:50.150
• there is no single subscriber value that is universal across both states
• if you need a reusable workflow, first discover the real active identifier and then build li-source with that value

Important iperf3 note:

• ont1-subscriber-traffic.sh and ont2-subscriber-traffic.sh now set IPERF_MSS=1400 by default
• this avoids the lab case where the TCP session negotiated a jumbo MSS close to 9440, sent an initial burst, and then stalled with no sustained traffic
• if you override IPERF_MSS, keep a conservative value or validate yourself that the path can carry large TCP segments reliably

11.1 Start the TCP test server

Start iperf3 on the dns node:

bash configs/cbot/scripts/dns-iperf-server.sh start

Verify that it is listening on 2001:db8:aaaa::2:5201:

bash configs/cbot/scripts/dns-iperf-server.sh status

Expected result:

• status must show a LISTEN line for 2001:db8:aaaa::2:5201
• if status does not show the listener, do not continue with upload or download

11.2 Enable interception on the BNG

From the liadmin user on the active BNG:

• without LUDB fallback, the simplest validated flow is to use subscriber "ONT-001"
• if LUDB fallback has already been applied, ONT-001 stops appearing as an alias on the BNG; in that case use the exact active subscriber-id returned by show service active-subscribers
• ONT-002 can also be used as a PPPoE alternative, but the main ATP path remains ONT-001 because it is the clearest IPoE validation

A:liadmin@MASTER# li private
[pr:/li]
A:liadmin@MASTER# li-source "li-dest-1" subscriber "ONT-001" ingress true
A:liadmin@MASTER# li-source "li-dest-1" subscriber "ONT-001" egress true
A:liadmin@MASTER# li-source "li-dest-1" subscriber "ONT-001" intercept-id 1001
A:liadmin@MASTER# li-source "li-dest-1" subscriber "ONT-001" session-id 1
A:liadmin@MASTER# log log-id "1" netconf-stream "li"
A:liadmin@MASTER# log log-id "1" source li true
A:liadmin@MASTER# log { log-id "1" destination netconf }
A:liadmin@MASTER# commit

Note:

• the LIG in this lab consumes the BNG UDP mirror (ip-udp-shim)
• netconf-stream "li" is still operationally useful, but the LEA panel shown in this lab is fed by the UDP listener on port 11111
• if the ATP is executed while AAA is in LUDB fallback, the subscriber-id may stop being ONT-001 and show up as <MAC>|<SAP> in show service active-subscribers
• in that scenario, the most precise way to enable LI is to use the rebuilt subscriber-id returned by the BNG; using SAP can mix traffic from other sessions if they share the same circuit
• the capture scope depends on how li-source is defined: by subscriber alias, by exact subscriber-id, or by the real active session context
• for ATP, using the exact identity returned by the BNG for that run is the safest way to avoid mixing traffic from other sessions

Example using the exact active subscriber in LUDB fallback:

A:liadmin@MASTER# li-source "li-dest-1" subscriber "00:d0:f6:01:01:01|1/1/c2/1:50.150" ingress true
A:liadmin@MASTER# li-source "li-dest-1" subscriber "00:d0:f6:01:01:01|1/1/c2/1:50.150" egress true
A:liadmin@MASTER# li-source "li-dest-1" subscriber "00:d0:f6:01:01:01|1/1/c2/1:50.150" intercept-id 2004
A:liadmin@MASTER# li-source "li-dest-1" subscriber "00:d0:f6:01:01:01|1/1/c2/1:50.150" session-id 1
A:liadmin@MASTER# commit

Exact configuration used in the validated tests for this run:

[pr:/li]
A:liadmin@MASTER# info flat
    li-source "li-dest-1" subscriber "00:d0:f6:01:01:01|1/1/c2/1:50.150" ingress true
    li-source "li-dest-1" subscriber "00:d0:f6:01:01:01|1/1/c2/1:50.150" egress true
    li-source "li-dest-1" subscriber "00:d0:f6:01:01:01|1/1/c2/1:50.150" intercept-id 2101
    li-source "li-dest-1" subscriber "00:d0:f6:01:01:01|1/1/c2/1:50.150" session-id 1
    log log-id "1" netconf-stream "li"
    log log-id "1" source li true
    log { log-id "1" destination netconf }

Operational reading of that configuration:

• the capture was tied to the exact subscriber-id for wan1
• that is why the correct API queries in this validation use intercept-id 2101
• that is also why the functional traffic tests were aligned with ONT_WAN=wan1
• that same syntax is not the recommended one while AAA is still in its normal state; in that case you should normally intercept subscriber "ONT-001"

Important:

• configs/cbot/scripts/ont1-subscriber-traffic.sh accepts ONT_WAN=wan1|wan2|wan3 and automatically resolves the active IPv6 on that WAN
• without AAA fallback to LUDB, the simplest validated option is ONT_WAN=wan2, because it matches the normal dual-stack path for ONT-001
• wan1 can also be used without fallback if you intercepted ONT-001 and want to validate that specific WAN; it is not the primary ATP path because wan2 is a more representative normal dual-stack case
• if you are coming from LUDB fallback, use the WAN that matches the rebuilt subscriber-id you selected
• in the current lab validation, the correct case for ONT-001 under LUDB fallback is ONT_WAN=wan1
• do not mix wan1 and wan2 in the same ATP 11 run; if you intercepted 00:d0:f6:01:01:01|1/1/c2/1:50.150, all traffic tests must use wan1
• run upload, download, and dns64 sequentially, not in parallel
• use PARALLEL=1 for ATP; higher values make the test more fragile and add no functional value for LEA
• the scripts already clamp IPERF_MSS=1400 by default to avoid the initial burst with no sustained TCP traffic
• configs/cbot/scripts/ont2-subscriber-traffic.sh is also ready if you want an alternative ONT-002 PPPoE validation

Quick check:

Without fallback:

ONT_USER=user ONT_PASS=test ONT_WAN=wan2 bash configs/cbot/scripts/ont1-subscriber-traffic.sh show-bind

Alternative without fallback on wan1:

ONT_USER=user ONT_PASS=test ONT_WAN=wan1 bash configs/cbot/scripts/ont1-subscriber-traffic.sh show-bind

With LUDB fallback:

ONT_USER=user ONT_PASS=test ONT_WAN=wan1 bash configs/cbot/scripts/ont1-subscriber-traffic.sh show-bind

Expected result:

• without fallback:
  • ONT_WAN=wan2
  • INTERFACE=eth3.200
  • ONT_BIND_V6=<active ONT-001 WAN IPv6 on wan2>
• valid alternative without fallback:
  • ONT_WAN=wan1
  • INTERFACE=eth1.150
  • ONT_BIND_V6=<active ONT-001 WAN IPv6 on wan1>
• with fallback:
  • ONT_WAN=wan1
  • INTERFACE=eth1.150
  • ONT_BIND_V6=<active ONT-001 WAN IPv6 on wan1>

11.3 Generate TCP traffic from ONT1

Case without LUDB fallback:

ONT_USER=user ONT_PASS=test ONT_WAN=wan2 DURATION=12 PARALLEL=1 bash configs/cbot/scripts/ont1-subscriber-traffic.sh upload

Alternative without fallback on wan1:

ONT_USER=user ONT_PASS=test ONT_WAN=wan1 DURATION=12 PARALLEL=1 bash configs/cbot/scripts/ont1-subscriber-traffic.sh upload

Case with LUDB fallback using the rebuilt ONT-001 subscriber:

ONT_USER=user ONT_PASS=test ONT_WAN=wan1 DURATION=12 PARALLEL=1 bash configs/cbot/scripts/ont1-subscriber-traffic.sh upload

Do not run this command in parallel with download or dns64.

If you need another session, change ONT_WAN or provide ONT_BIND_V6 explicitly. The important point is that traffic must exit through the same session you intercepted on the BNG.

Internally it runs:

iperf3 -6 -c 2001:db8:aaaa::2 -B <active-IPv6-on-the-selected-WAN> -p 5201 -t 12 -P 1 -M 1400

In LEA you should see events such as:

• PROTO = TCP
• IP ORIGIN = active IPv6 on the selected WAN
• IP DESTINATION = 2001:db8:aaaa::2
• P.ORIG with high ephemeral ports
• P.DEST = 5201

Operational note:

• after the MSS fix, iperf3 should show sustained traffic instead of only an initial burst
• exact throughput is not an ATP KPI; the important point is that the TCP session stays up and LEA records both INGRESS and EGRESS events
• if you again see 256 KBytes in the first second and then 0.00 bits/sec, verify that you did not override IPERF_MSS

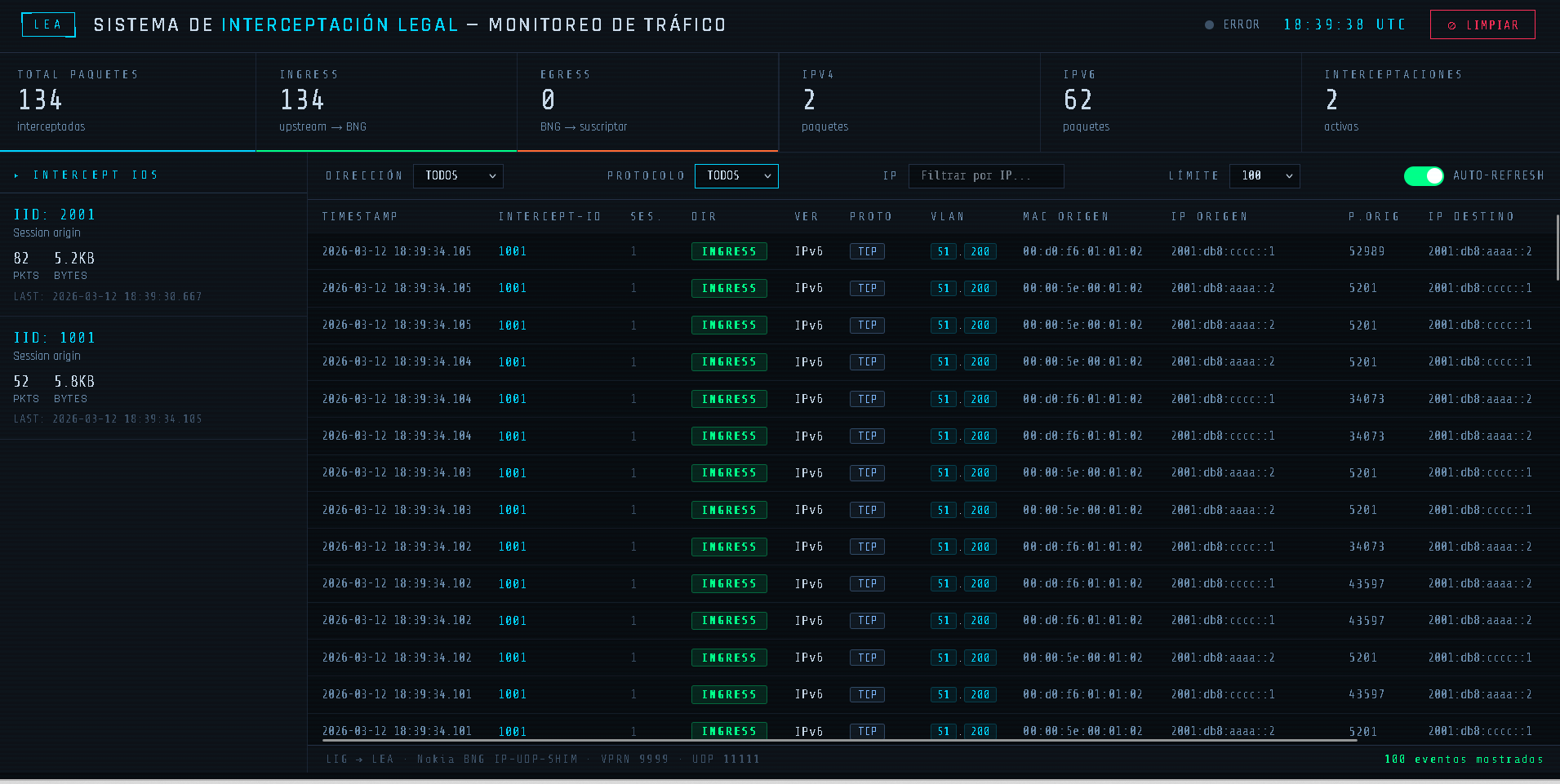

Visual reference of the expected LEA result:

11.4 Generate reverse traffic

Without fallback:

ONT_USER=user ONT_PASS=test ONT_WAN=wan2 DURATION=12 PARALLEL=1 bash configs/cbot/scripts/ont1-subscriber-traffic.sh download

Alternative without fallback on wan1:

ONT_USER=user ONT_PASS=test ONT_WAN=wan1 DURATION=12 PARALLEL=1 bash configs/cbot/scripts/ont1-subscriber-traffic.sh download

With fallback:

ONT_USER=user ONT_PASS=test ONT_WAN=wan1 DURATION=12 PARALLEL=1 bash configs/cbot/scripts/ont1-subscriber-traffic.sh download

Expected result:

• the command must not end with Connection refused
• the command must not end with control socket has closed unexpectedly
• LEA must show TCP flows from 2001:db8:aaaa::2:5201 towards the selected WAN IPv6 classified as EGRESS

11.5 Generate DNS64/UDP traffic

Without fallback:

ONT_USER=user ONT_PASS=test ONT_WAN=wan2 DURATION=10 bash configs/cbot/scripts/ont1-subscriber-traffic.sh dns64

Alternative without fallback on wan1:

ONT_USER=user ONT_PASS=test ONT_WAN=wan1 DURATION=10 bash configs/cbot/scripts/ont1-subscriber-traffic.sh dns64

With fallback:

ONT_USER=user ONT_PASS=test ONT_WAN=wan1 DURATION=10 bash configs/cbot/scripts/ont1-subscriber-traffic.sh dns64

In LEA this is usually visible as:

• PROTO = UDP
• IP DESTINATION = 2001:db8:aaaa::2
• P.DEST = 53

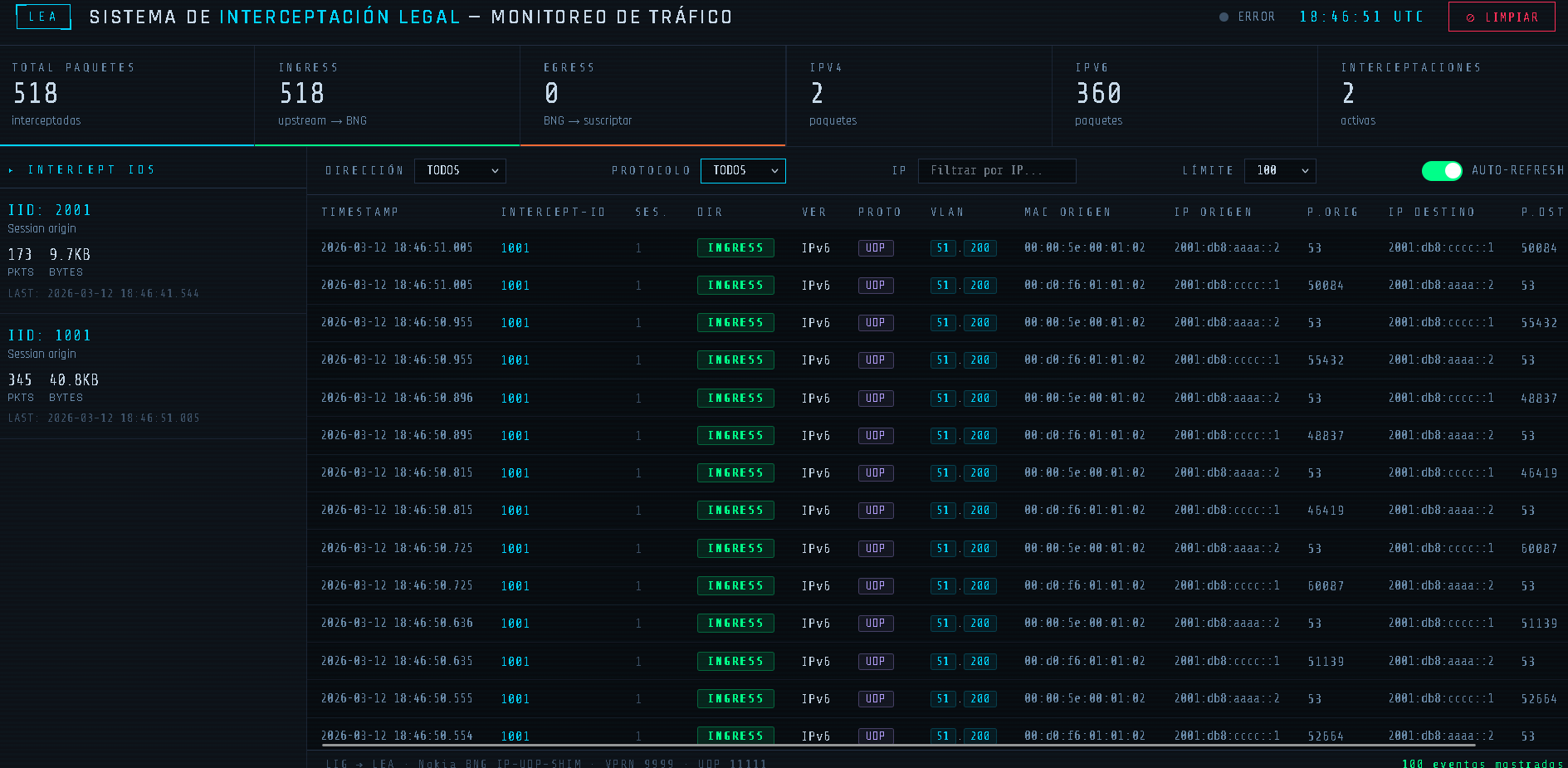

Visual reference of the expected LEA result for DNS64/UDP:

11.6 Stop and inspect the test server

Stop iperf3:

bash configs/cbot/scripts/dns-iperf-server.sh stop

Inspect the server logs:

bash configs/cbot/scripts/dns-iperf-server.sh logs

11.7 Query the LEA APIs

General summary:

curl -s http://10.99.1.12:8080/api/stats | jq

Latest events:

curl -s 'http://10.99.1.12:8080/api/events?limit=20' | jq

Events for a specific interception:

curl -s 'http://10.99.1.12:8080/api/events?limit=100&intercept_id=<INTERCEPT_ID_USED_IN_LI>' | jq

Interception summary:

curl -s http://10.99.1.12:8080/api/intercepts | jq

11.8 Useful event queries

Top observed protocols:

curl -s 'http://10.99.1.12:8080/api/events?limit=500&intercept_id=<INTERCEPT_ID_USED_IN_LI>' \
| jq -r 'group_by(.proto)[] | "\(.[0].proto): \(length)"'

Top source IPs:

curl -s 'http://10.99.1.12:8080/api/events?limit=500&intercept_id=<INTERCEPT_ID_USED_IN_LI>' \
| jq -r 'group_by(.src_ip)[] | "\(.[0].src_ip): \(length)"'

Top destination IPs:

curl -s 'http://10.99.1.12:8080/api/events?limit=500&intercept_id=<INTERCEPT_ID_USED_IN_LI>' \
| jq -r 'group_by(.dst_ip)[] | "\(.[0].dst_ip): \(length)"'

Top destination ports:

curl -s 'http://10.99.1.12:8080/api/events?limit=500&intercept_id=<INTERCEPT_ID_USED_IN_LI>' \
| jq -r 'map(select(.dst_port != null)) | group_by(.dst_port)[] | "\(.[0].dst_port): \(length)"'

Traffic split by INGRESS and EGRESS:

curl -s 'http://10.99.1.12:8080/api/events?limit=500&intercept_id=<INTERCEPT_ID_USED_IN_LI>' \
| jq -r 'group_by(.direction)[] | "\(.[0].direction): \(length)"'

Unique flows src_ip:src_port -> dst_ip:dst_port:

curl -s 'http://10.99.1.12:8080/api/events?limit=500&intercept_id=<INTERCEPT_ID_USED_IN_LI>' \
| jq -r '.[] | "\(.proto) \(.src_ip):\(.src_port) -> \(.dst_ip):\(.dst_port)"' \
| sort | uniq -c

11.9 Operational notes

• If the APIs return zero counters or empty lists, there is usually no intercepted traffic active at that moment.
• If li-source is configured on the wrong BNG, the LIG will not receive packets even though the panel itself is operational.
• If ONT-001 disappears because of LUDB fallback, do not automatically replace it with ONT-002. First inspect show service active-subscribers and use the exact active subscriber-id for ONT-001.
• Without AAA fallback to LUDB, the main ATP 11 run for ONT-001 uses wan2.
• wan1 is also valid without fallback if you want to observe that specific session.
• Under LUDB fallback, the validated ATP 11 run for ONT-001 uses wan1.
• The correct WAN must always match the identity intercepted in li-source.
• If you intercept by exact subscriber-id, query the API with that real intercept-id and generate traffic on that same session.
• If AAA is still normal, do not assume a <MAC>|<SAP> style subscriber-id will work for LI; in that state use the subscriber alias exposed by the BNG, for example ONT-001.
• If you want a generic method, the right approach is not to hardcode one string but to resolve the currently active subscriber identity first and use that identity in the capture.
• If you test wan3 or mix wan1 and wan2 in the same run, that is a different validation and must not be mixed with the main ATP path.
• ONT-002 can also be validated now because the LIG parser decodes PPPoE session traffic with IPv6/IPv4.
• For the clearest LEA validation, combine one TCP test (iperf3) and one UDP test (dns64) to quickly distinguish protocols in the UI.
• If iperf3 falls back into an initial burst followed by 0.00 bits/sec, the most likely reason is that an overly large MSS is being used on that lab path. Retry with the default IPERF_MSS=1400.
