7. ESM - Pruebas de Suscriptores

7.1 Prerrequisitos​

Antes de ejecutar estas pruebas, asegúrate de tener:

  • la imagen Radius (véase RADIUS / AAA)
  • el usuario PPPoE base test@test.com

Luego espera a que ont2 complete el login PPPoE y valida en los BNG:

show service active-subscribers

7.2 Escenario Validado: Baja y Alta PPPoE con Containerbot​

En el lab.yml, ONT2 está configurado como PPPoE:

ont2:
  kind: linux
  image: ghcr.io/abelperezr/ont-ds:0.3
  env:
    CONNECTION_TYPE: pppoe
    WAN1_MODE: "ipv6"
    PPP_USER: "test@test.com"
    PPP_PASS: "testlab123"
    VLAN_ID: "150"
    IFPHY: "eth1"
    IFLAN: "eth2"
    MAC_ADDRESS: "00:D0:F6:01:01:04"

Este procedimiento puede realizarse directamente con los scripts ubicados en small-isp-lab/configs/cbot/scripts (para ello hay que tener Python instalado y sus librerías):

python3 manage_authorize.py list
python3 manage_authorize.py show 'test@test.com'
abel@abel:~/small-isp-lab/configs/cbot/scripts$ python3 manage_authorize.py show 'test@test.com'
# ============================================================================
# ONT2-WAN1
# ============================================================================
"test@test.com"      Cleartext-Password := "testlab123"
                    Framed-Pool = "cgnat",
                    Framed-IPv6-Pool = "IPv6",
                    Alc-Delegated-IPv6-Pool = "IPv6",
                    Alc-SLA-Prof-str = "100M",
                    Alc-Subsc-Prof-str = "subprofile",
                    Alc-Subsc-ID-Str = "ONT-002-PPPOE",
                    Alc-MSAP-Interface = "ipv6-only",
                    Fall-Through = Yes

Opción alternativa: ejecutar directamente desde containerbot:

docker exec -it containerbot python3 /app/scripts/manage_authorize.py list
docker exec -it containerbot python3 /app/scripts/manage_authorize.py show 'test@test.com'

O desde containerbot, si seguiste los pasos para sincronizarlo con Telegram:

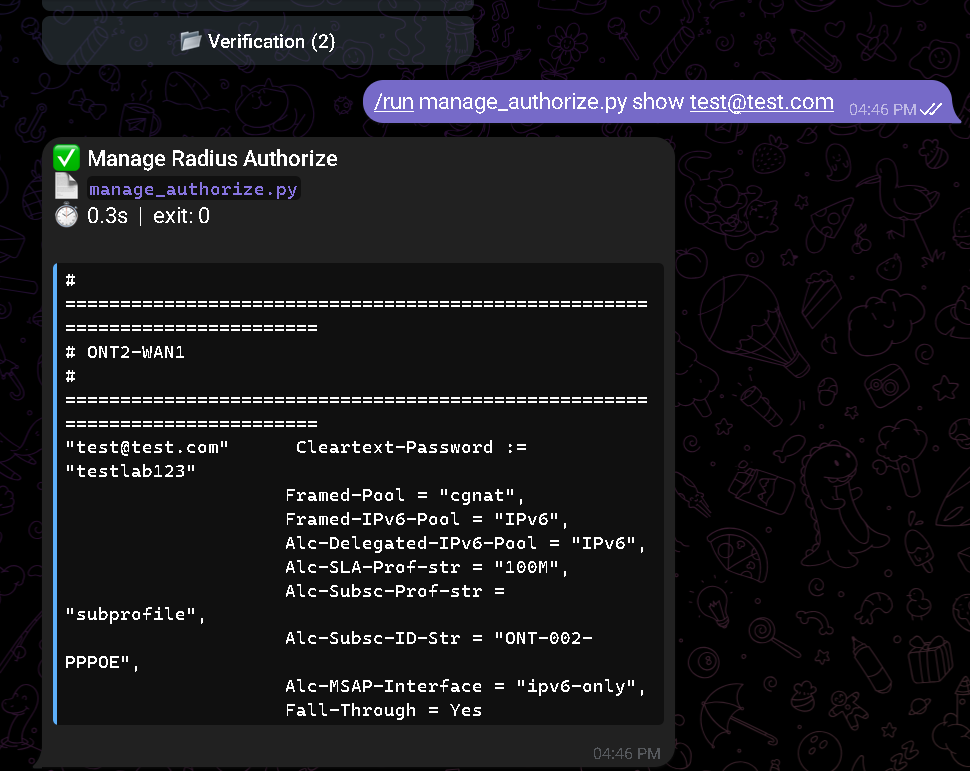

Resultado de manage_authorize.py show test@test.com

Validar el suscriptor en el BNG:

A:admin@MASTER# show service active-subscribers

===============================================================================
Active Subscribers
===============================================================================
Subscriber ONT-002
           (subprofile)
...
2001:db8:100::2/128
              00:d0:f6:01:01:04  PPP 1              DHCP6        9998       Y
2001:db8:200:1::/64
              00:d0:f6:01:01:04  PPP 1              DHCP6-PD-MR  9998       Y
===============================================================================
Valores de ejemplo

Las direcciones IPv4/IPv6 y los prefijos mostrados en esta sección son ejemplos de referencia. Según el estado previo del laboratorio, los recursos disponibles del equipo anfitrión y la secuencia de reconexiones, pueden variar entre ejecuciones.

Validar direccionamiento en ont2:

docker exec ont2 sh -lc 'ip ad show ppp0; echo ---; ip -6 route'
docker exec ont2 sh -lc 'ip ad show ppp0; echo ---; ip -6 route'
58: ppp0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1492 qdisc fq_codel state UNKNOWN group default qlen 3
    link/ppp
    inet6 2001:db8:100::3/128 scope global
       valid_lft forever preferred_lft forever
    inet6 fe80::a877:b9ac:64af:934 peer fe80::7e20:64ff:fe84:8365/128 scope link nodad
       valid_lft forever preferred_lft forever
---
2001:db8:100::3 dev ppp0 proto kernel metric 256 pref medium
fe80::7e20:64ff:fe84:8365 dev ppp0 proto kernel metric 256 pref medium
fe80::a877:b9ac:64af:934 dev ppp0 proto kernel metric 256 pref medium
fe80::/64 dev eth1 proto kernel metric 256 pref medium
fe80::/64 dev eth1.150 proto kernel metric 256 pref medium
default dev ppp0 metric 1024 pref medium
Valores de ejemplo

El direccionamiento mostrado arriba es un ejemplo. La IPv6 WAN y el prefijo delegado pueden cambiar entre pruebas sin que eso implique una falla del ATP.

Dar de baja inmediata al suscriptor:

python3 manage_authorize.py deactivate 'test@test.com'

Opción alternativa: ejecutar directamente desde containerbot:

docker exec containerbot sh -lc 'python3 /app/scripts/manage_authorize.py --disconnect-debug disconnect "test@test.com"'

O desde containerbot:

/run manage_authorize.py deactivate test@test.com

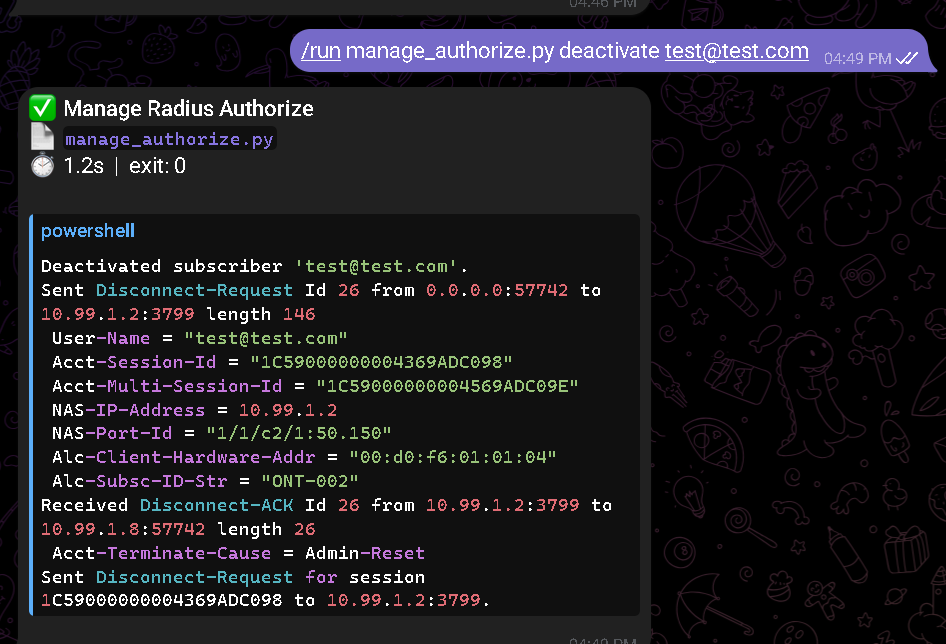

Resultado de manage_authorize.py deactivate test@test.com

Validar la baja en el BNG:

A:admin@MASTER# show service active-subscribers

Resultado esperado:

  • ONT-002 ya no aparece
  • el bot muestra previamente Disconnect-ACK

Si ONT-002 sigue visible:

  • la autorización futura ya quedó eliminada, pero la sesión activa no fue expulsada todavía
  • en ese caso, lanzar disconnect explícito y repetir la validación en el BNG

Validar la baja en ont2:

docker exec ont2 sh -lc 'ip ad show ppp0; echo ---; tail -n 40 /var/log/ppp/pppd.log'
 docker exec ont2 sh -lc 'ip ad show ppp0; echo ---; tail -n 40 /var/log/ppp/pppd.log'
66: ppp0: <POINTOPOINT,MULTICAST,NOARP> mtu 1500 qdisc noop state DOWN group default qlen 3
    link/ppp
---
2026-03-08 21:50:37 [pppoe] Timeout esperando ppp0
2026-03-08 21:50:37 [pppoe] Falló la conexión PPPoE
2026-03-08 21:50:37 [pppoe] Falló la conexión PPPoE
2026-03-08 21:50:37 [pppoe] Últimas líneas del log pppd:
sent [LCP TermAck id=0xb3]
Send PPPOE Discovery V1T1 PADR
Connect: ppp0

Reactivar el suscriptor:

python3 manage_authorize.py add 'test@test.com' \
  --title 'ONT2-WAN1' \
  --password 'testlab123' \
  --framed-pool 'cgnat' \
  --framed-ipv6-pool 'IPv6' \
  --delegated-ipv6-pool 'IPv6' \
  --subscriber-id 'ONT-002' \
  --subscriber-profile 'subprofile' \
  --msap-interface 'ipv6-only' \
  --sla-profile '100M'

O con docker exec sobre containerbot:

docker exec containerbot sh -lc 'python3 /app/scripts/manage_authorize.py add "test@test.com" \
  --title "ONT2-WAN1" \
  --password "testlab123" \
  --framed-pool "cgnat" \
  --framed-ipv6-pool "IPv6" \
  --delegated-ipv6-pool "IPv6" \
  --subscriber-id "ONT-002" \
  --subscriber-profile "subprofile" \
  --msap-interface "ipv6-only" \
  --sla-profile "100M"'

O desde containerbot:

/run manage_authorize.py add test@test.com --title ONT2-WAN1 --password testlab123 --framed-pool cgnat --framed-ipv6-pool IPv6 --delegated-ipv6-pool IPv6 --subscriber-id ONT-002 --subscriber-profile subprofile --msap-interface ipv6-only --sla-profile 100M

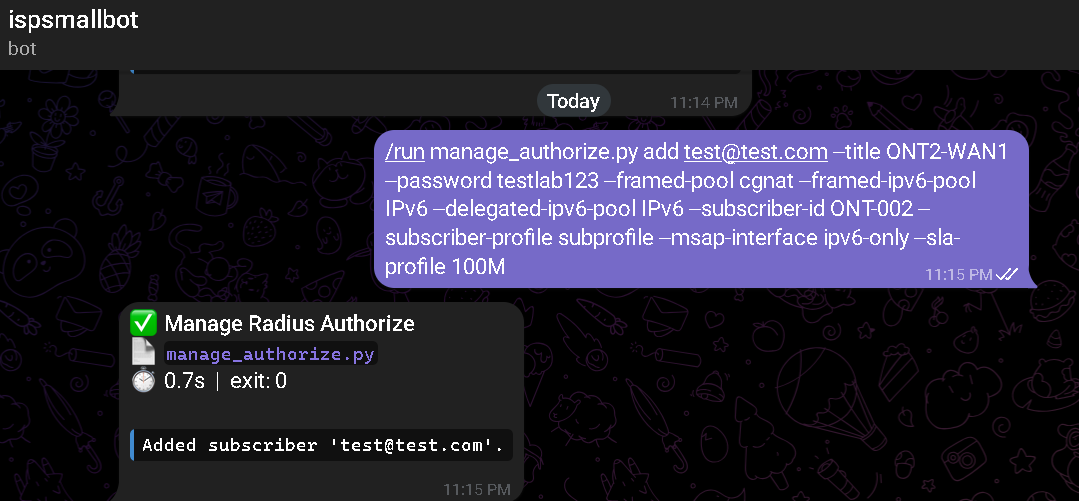

Resultado de manage_authorize.py add test@test.com

Importante:

  • --subscriber-profile 'subprofile' es obligatorio para que el alta vuelva a reconstruir correctamente el subscriber en el BNG.
  • como ventana de convergencia, esperar entre 10 y 120 segundos antes de ejecutar lo siguiente
  • en PCs con más recursos, la recuperación puede ocurrir bastante antes, incluso en pocos segundos
  1. Validar nuevamente BNG y ONT:
A:admin@MASTER# show service active-subscribers
docker exec ont2 sh -lc 'ip ad show ppp0; echo ---; ip -6 route'

Resultado esperado:

  • ONT-002 vuelve a aparecer en el BNG
  • ont2 recupera 2001:db8:100::2/128
Valores de ejemplo

La IPv6 recuperada en ont2 se muestra como ejemplo. El valor exacto puede variar entre reconexiones.

  1. Editar el subscriber-id:
docker exec containerbot python3 /app/scripts/manage_authorize.py edit 'test@test.com' \
  --subscriber-id 'ONT-002-PPPOE'
  1. Verificar el cambio en RADIUS:
docker exec radius cat /etc/raddb/mods-config/files/authorize

Resultado esperado:

  • el bloque de test@test.com debe mostrar Alc-Subsc-ID-Str = "ONT-002-PPPOE"

7.2.1 Escenario Validado: Corte y Reconexión IPoE de ONT-001​

Este flujo quedó validado para las tres WAN IPoE de ont1 usando docker exec sobre containerbot, sin necesidad de ejecutar clear service manual en el BNG.

Base operativa:

  • WAN1 00:d0:f6:01:01:01 ipv6-only
  • WAN2 00:d0:f6:01:01:02 dual-stack
  • WAN3 00:d0:f6:01:01:03 vip

Cortar una WAN IPoE​

Ejecutar una a una.

Ejemplos:

docker exec containerbot sh -lc 'python3 /app/scripts/manage_authorize.py --disconnect-debug deactivate 00:d0:f6:01:01:01'
docker exec containerbot sh -lc 'python3 /app/scripts/manage_authorize.py --disconnect-debug deactivate 00:d0:f6:01:01:02'
docker exec containerbot sh -lc 'python3 /app/scripts/manage_authorize.py --disconnect-debug deactivate 00:d0:f6:01:01:03'

Resultado esperado:

  • containerbot muestra Disconnect-Request
  • el BNG responde Disconnect-ACK
  • sólo desaparece la WAN seleccionada en show service active-subscribers
  • las otras WAN de ONT-001 permanecen activas
  • ONT-002 no se afecta

Validación rápida en el BNG:

show service active-subscribers | match 00:d0:f6:01:01:01
show service active-subscribers | match 00:d0:f6:01:01:02
show service active-subscribers | match 00:d0:f6:01:01:03
show service active-subscribers | match 00:d0:f6:01:01:04

Reactivar una WAN IPoE​

Ejemplos:

docker exec containerbot sh -lc 'python3 /app/scripts/manage_authorize.py add 00:d0:f6:01:01:01 \
  --title ONT1-WAN1-BNG1 \
  --password testlab123 \
  --framed-ipv6-pool IPv6 \
  --delegated-ipv6-pool IPv6 \
  --subscriber-id ONT-001 \
  --subscriber-profile subprofile \
  --msap-interface ipv6-only \
  --sla-profile 100M'

docker exec containerbot sh -lc 'python3 /app/scripts/manage_authorize.py add 00:d0:f6:01:01:02 \
  --title ONT1-WAN2-BNG1 \
  --password testlab123 \
  --framed-pool cgnat \
  --framed-ipv6-pool IPv6-dual-stack \
  --delegated-ipv6-pool IPv6-dual-stack \
  --subscriber-id ONT-001 \
  --subscriber-profile subprofile \
  --msap-interface dual-stack \
  --sla-profile 100M'

docker exec containerbot sh -lc 'python3 /app/scripts/manage_authorize.py add 00:d0:f6:01:01:03 \
  --title ONT1-WAN3-BNG1 \
  --password testlab123 \
  --framed-pool one-to-one \
  --subscriber-id ONT-001 \
  --subscriber-profile subprofile \
  --msap-interface vip \
  --sla-profile 100M'

Validación en ont1:

docker exec ont1 sh -lc 'curl -sS http://127.0.0.1:8080/api/status'

Resultado esperado:

  • WAN1 vuelve con IPv6 WAN y PD activo
  • WAN2 vuelve con IPv4 + IPv6
  • WAN3 vuelve con IPv4
  • la WAN reaparece en show service active-subscribers
Ventana de convergencia

La ONT puede recuperar primero la dirección IP y unos segundos después reaparecer en el BNG. En las pruebas validadas, la recuperación ocurrió sin clear manual y dentro de una ventana corta de convergencia.

7.3 Notas Operativas​

  • delete solo elimina la autorización para autenticaciones futuras
  • deactivate es la operación recomendada para simular suspensión inmediata
  • deactivate debe validarse siempre contra dos señales: Disconnect-ACK y desaparición de la sesión en el BNG
  • si solo se elimina la entrada en FreeRADIUS pero la sesión sigue activa, usar disconnect explícito contra el mismo identificador
  • para sesiones IPoE, usar la MAC suele ser la forma más robusta de identificar al subscriber
  • después de editar atributos de una sesión ya activa, puede ser necesario forzar disconnect para que el nuevo valor se refleje en la siguiente sesión
  • el laboratorio usa FreeRADIUS oficial derivado, con radclient, SSH y accounting habilitado para este flujo

7.4 Fallback a la LUDB​

El fallback a LUDB quedó verificado para los tres subscribers IPoE de ont1 forzando renews desde CLI contra la API del ONT. El caso PPPoE no hace parte de esta prueba porque la entrada LUDB ONT2-PPPOE sigue comentada en configs/sros/master.txt y configs/sros/slave.txt.

7.4.1 Detener RADIUS y limpiar el estado en el BNG Master​

docker stop radius
clear service id "9998" ipoe session all
clear router "9998" dhcp6 local-dhcp-server "suscriptores_v6" leases all

Resultado esperado:

  • las sesiones IPoE activas desaparecen temporalmente
  • los leases DHCPv6 quedan en cero
  • show aaa radius-server-policy "radius_policy" puede mostrar el servidor en probing o out-of-service según el temporizador de health-check

Ejemplo observado:

[/]
A:admin@MASTER# show router 9998 dhcp6 local-dhcp-server "suscriptores_v6" leases

===============================================================================
Leases for DHCPv6 server suscriptores_v6
===============================================================================
No leases found
===============================================================================

7.4.2 Forzar renews desde CLI en ont1​

En lugar de usar la UI, se puede invocar la misma lógica con curl contra la API local del ONT.

Desde tu laptop o desde el host donde corre Containerlab, usa el puerto publicado 127.0.0.1:8090:

curl -sS -X POST http://127.0.0.1:8090/api/dhcp6/renew/1
curl -sS -X POST http://127.0.0.1:8090/api/dhcp/renew/2
curl -sS -X POST http://127.0.0.1:8090/api/dhcp6/renew/2
curl -sS -X POST http://127.0.0.1:8090/api/dhcp/renew/3

Si ejecutas los curl dentro del contenedor ont1, el servicio escucha en 127.0.0.1:8080. El lab.yml publica ese puerto como 8090:8080 para usarlo desde el host.

Salida observada:

{"success": true, "message": "DHCPv6 renewal initiated on eth1.150"}
{"success": true, "message": "DHCP renewal initiated on eth3.200"}
{"success": true, "message": "DHCPv6 renewal initiated on eth3.200"}
{"success": true, "message": "DHCP renewal initiated on eth4.300"}
Ventana de convergencia

Después de lanzar los renews, esperar entre 10 y 30 segundos antes de validar la reconstrucción de sesiones y leases.

En hosts con más recursos, la recuperación puede ocurrir bastante más rápido.

7.4.3 Validar que la LUDB reconstruyó los subscribers IPoE​

Verifica en el BNG Master:

show service id 9998 ipoe session
show router 9998 dhcp6 local-dhcp-server "suscriptores_v6" leases
show service active-subscribers

Resultado observado:

[/]
A:admin@MASTER# show service id 9998 ipoe session

===============================================================================
IPoE sessions for svc-id 9998
===============================================================================
[1/1/c2/1:50.150]                00:d0:f6:01:01:01
[1/1/c2/1:51.200]                00:d0:f6:01:01:02
[1/1/c2/1:52.300]                00:d0:f6:01:01:03
-------------------------------------------------------------------------------
Number of sessions : 3
===============================================================================
[/]
A:admin@MASTER# show router 9998 dhcp6 local-dhcp-server "suscriptores_v6" leases

===============================================================================
Leases for DHCPv6 server suscriptores_v6
===============================================================================
2001:db8:100::X/128
2001:db8:200::/64
2001:db8:cccc::1/128
2001:db8:dddd::/64
-------------------------------------------------------------------------------
4 leases found
===============================================================================
[/]
A:admin@MASTER# show service active-subscribers

===============================================================================
Active Subscribers
===============================================================================
00:d0:f6:01:01:01|1/1/c2/1:50.150
  2001:db8:100::X/128
  2001:db8:200::/64
00:d0:f6:01:01:02|1/1/c2/1:51.200
  100.80.0.4
  2001:db8:cccc::1/128
  2001:db8:dddd::/64
00:d0:f6:01:01:03|1/1/c2/1:52.300
  192.168.5.4
-------------------------------------------------------------------------------
Number of active subscribers : 3
===============================================================================
Subscriber-ID durante fallback LUDB

Durante el fallback a LUDB, el subscriber-id puede aparecer con formato MAC|SAP en lugar de ONT-001. Esto ocurre porque la sesión entra usando un usuario por defecto de la LUDB y el BNG reconstruye la identidad operativa a partir de la MAC y del SAP.

7.4.4 Validar el estado final en el ONT​

Desde tu laptop o desde el host, la consulta se hace por el puerto publicado 8090:

curl -sS http://127.0.0.1:8090/api/status

Si ejecutas la consulta dentro del contenedor ont1, usa http://127.0.0.1:8080/api/status.

Puntos a comprobar:

  • WAN1 recupera una dirección del pool 2001:db8:100::/56
  • el PD activo vuelve a ser 2001:db8:200::/64
  • la LAN eth2 anuncia 2001:db8:200::1/64
  • WAN2 recupera 100.80.0.4/29 y 2001:db8:cccc::1/128
  • WAN3 recupera 192.168.5.4/29
Valores de ejemplo

Las direcciones mostradas en esta validación son ejemplos. Tras renovar leases o reconstruir sesiones, los valores exactos pueden cambiar y seguir siendo válidos.

7.4.5 Restaurar RADIUS​

docker start radius

7.5 Verificar políticas y perfiles de suscriptor​

Verifica las políticas y perfiles asociados al subscriber management.

Comandos relacionados:

  • show subscriber-mgmt authentication "autpolicy"
  • show subscriber-mgmt authentication "autpolicy" association
  • show subscriber-mgmt radius-accounting-policy "accounting"
  • show subscriber-mgmt radius-accounting-policy "accounting" association
  • show subscriber-mgmt sub-profile
  • show subscriber-mgmt sla-profile
  • show subscriber-mgmt sub-ident-policy "subident"
  • show subscriber-mgmt ipoe-session-policy "ipoe"
  • show subscriber-mgmt ppp-policy "pppoe"
[gl:/configure]
A:admin@MASTER# show subscriber-mgmt authentication "autpolicy"

===============================================================================
Authentication Policy autpolicy
===============================================================================
Description          : (Not Specified)
Re-authentication    : Yes                 Username Format      : MAC Address
PPPoE Access Method  : PAP/CHAP            Username Mac-Format  : "aa:"
PPP-Username Oper    : None
PPP-Domain-Name      : N/A
Username Oper        : None
Domain-Name          : N/A
Acct-Stop-On-Fail    :
RADIUS Server Policy : "radius_policy"
Fallback Action      : user-db clientes
Force Probing        : false
Last Mgmt Change     : 03/08/2026 14:00:16
-------------------------------------------------------------------------------
Include Radius Attributes
-------------------------------------------------------------------------------
Remote Id            : Yes                 Circuit Id           : No
NAS Port Id          : Yes                 NAS Identifier       : Yes
PPPoE Service Name   : Yes                 DHCP Vendor Class Id : Yes
Access Loop Options  : Yes                 MAC Address          : Yes
NAS Port Prefix      : None                NAS Port Suffix      : None
NAS-Port-Type        : Yes (standard)      Acct Session Id      : Session
Calling Station Id   : Yes (sap-string)    Called Station Id    : Yes
Tunnel Server Attr   : Yes                 DHCP Options         : Yes
NAS Port             : No                  SAP Session Index    : No
Wifi SSID VLAN       : No
DHCP6 Options        : No
Num-Attached-UEs     : No
Xcon Tunnel Home Addr: No
===============================================================================
[gl:/configure]
A:admin@MASTER# show subscriber-mgmt authentication "autpolicy" association

===============================================================================
Authentication Policy autpolicy
===============================================================================
-------------------------------------------------------------------------------
SAP Associations
-------------------------------------------------------------------------------
Service-Id : 2 (VPLS)
 - SAP : 1/1/c2/1:50.*
 - SAP : 1/1/c2/1:51.*
 - SAP : 1/1/c2/1:52.*

-------------------------------------------------------------------------------
Interface Associations
-------------------------------------------------------------------------------
Service-Id : 9998 (VPRN)
 - If Name : dual-stack
 - If Name : ipv6-only
 - If Name : vip
[gl:/configure]
A:admin@MASTER# show subscriber-mgmt radius-accounting-policy "accounting"

===============================================================================
Radius Accounting Policy accounting
===============================================================================
Description          : (Not Specified)
Update Interval      : 720 min.              Mcs Interval       : 0 min.
Oper Interval Jitter : 10%                   Configured Jitter  : 10%
Host Accounting      : None                  Session-id Format  : Number
Queue Instance Acct  : None                  Session Acct       : Interim-Host
Acct-tunn-conn format: %n
Delay Start Time     : None
RADIUS Server Policy : "radius_policy"
Triggered Updates    : None
Last Mgmt Change     : 03/08/2026 14:00:16
-------------------------------------------------------------------------------
Include Radius Attributes
-------------------------------------------------------------------------------
Framed IP Address    : Yes                   Framed Ip Netmask  : Yes
Subscriber Id        : Yes                   Circuit Id         : Yes
Remote Id            : Yes                   NAS Port Id        : Yes
NAS Identifier       : Yes                   Sub-Profile        : Yes
SLA-Profile          : Yes                   User-Name          : Yes
SPI Sharing Id       : No
Calling Station Id   : No                    Called Station Id  : Yes
NAS Port Prefix      : None
NAS Port Suffix      : None
Tunnel Server Attr   : Yes                   Tunnel Client Attr : No
NAS-port             : No                    NAS-Port-Type      : Yes (standar*
NAT-Port-Range       : Yes                   MAC Address        : Yes
Acct-delay-time      : Yes                   Acc-authentic      : Yes
IPv6-Address         : Yes                   Framed-Interface-Id: No
Delegated-IPv6-Prefix: Yes                   Framed-IPv6-Prefix : Yes
Wi-fi SSID VLAN      : No
Wi-fi RSSI           : No                    Alc-Acct-Tr-Reason : Yes
DHCP Vendor Class Id : No
Framed IPv6 Route    : Yes                   Framed Route       : Yes
All-auth-session-addr: No                    Access-loop-options: No
Detailed-Acct-Attr   : Yes                   Std-Acct-Attr      : Yes
v6-aggregate-stats   : No                    Alc-Error-Code     : No
Num-Attached-UEs     : No                    Steering-Profile   : No
BRG-Num-Act-Sess     : No
Bonding-Id           : No                    Active-Connections : No
Firewall-Info        : No
Xcnt-Tunnel-Home-Addr: No
Bearer-Fteid         : No
User-Location-Info   : No
LAC fragmentation    : No
Rat-type             : No
===============================================================================
[gl:/configure]
A:admin@MASTER# show subscriber-mgmt radius-accounting-policy "accounting" association

===============================================================================
Radius Accounting Policy accounting
===============================================================================
-------------------------------------------------------------------------------
Sub-Profile Associations
-------------------------------------------------------------------------------
subprofile
-------------------------------------------------------------------------------
Number of Subscriber Profiles : 1
===============================================================================
[gl:/configure]
A:admin@MASTER# show subscriber-mgmt sub-profile

===============================================================================
Subscriber Profiles
===============================================================================
Subscriber                       Description
-------------------------------------------------------------------------------
subprofile
-------------------------------------------------------------------------------
Number of Subscriber Profiles : 1
===============================================================================
[gl:/configure]
A:admin@MASTER# show subscriber-mgmt sla-profile

===============================================================================
SLA Profiles
===============================================================================
Name                             Description
-------------------------------------------------------------------------------
100M
100M-VIP
-------------------------------------------------------------------------------
Number of SLA Profiles : 2
===============================================================================
[gl:/configure]
A:admin@MASTER# show subscriber-mgmt sub-ident-policy "subident"

===============================================================================
Subscriber Identification Policy subident
===============================================================================
Strings-From-Option : No

-------------------------------------------------------------------------------
Sub Profile Map (Use direct map as default)
-------------------------------------------------------------------------------
Key                              Sub profile
-------------------------------------------------------------------------------
No mappings configured.

-------------------------------------------------------------------------------
SLA Profile Map (Use direct map as default)
-------------------------------------------------------------------------------
Key                              SLA profile
-------------------------------------------------------------------------------
No mappings configured.

-------------------------------------------------------------------------------
App Profile Map
-------------------------------------------------------------------------------
Key                              App profile
-------------------------------------------------------------------------------
No mappings configured.

-------------------------------------------------------------------------------
Python Scripts
-------------------------------------------------------------------------------
#         Admin Oper  Script
          State State Name
-------------------------------------------------------------------------------
Primary   Down  Down  N/A
Secondary Down  Down  N/A
Tertiary  Down  Down  N/A
[gl:/configure]
A:admin@MASTER# show subscriber-mgmt ipoe-session-policy "ipoe"

===============================================================================
IPoE Session Policy "ipoe"
===============================================================================
Description           : (Not Specified)
Last Mgmt Change      : 03/08/2026 14:00:16
Session Key           : sap-mac
Session Timeout       : unlimited
Circuit-Id from
authentication        : no
===============================================================================
[gl:/configure]
A:admin@MASTER# show subscriber-mgmt ppp-policy "pppoe"

===============================================================================
PPP Policy "pppoe"
===============================================================================
Description          : (Not Specified)
Last Mgmt Change     : 03/08/2026 14:00:16
PPP-mtu              : 1500                    Force PPP-mtu >1492  : No
Keepalive Interval   : 10s                     Keepalive Multiplier : 4
Disable AC-Cookies   : No                      PADO Delay           : 0msec
Max Sessions-Per-Mac : 1                       Reply-On-PADT        : Yes
Allow Same CID       : No                      Re-establish Session : Disabled
Max Sessions-Per-Cid : N/A
Allow No CID         : N/A
PPP-Authentication   : pref-PAP                PPP-CHAP Challenge   : 32 - 64
PPP-Init-Delay (ms)  : 50                      IPCP negotiate subnet: No
Unique SIDs-Per-SAP  : disabled                Reject-Disabled-Ncp  : No
Ignore-Magic-Num     : No                      Session Timeout      : unlimited
SID Allocation       : sequential
PADO AC-Name         : (Not Specified)
Default username     : (Not Specified)
Default password     : (Not Specified)
NCP Renegotiation    : terminate-session       Ignore-Identifier    : No

-------------------------------------------------------------------------------
PPP Custom Options
-------------------------------------------------------------------------------
Protocol Number Value
-------------------------------------------------------------------------------
No options configured.

-------------------------------------------------------------------------------
MLPPP
-------------------------------------------------------------------------------
Accept MRRU                 : false
Request short sequence nr.  : false
Endpoint class              : null
Endpoint address            : (Not Specified)
-------------------------------------------------------------------------------

7.6 Pruebas DHCP​

Verifica los servidores DHCP, el estado de los pools y las leases activas.

Comandos relacionados:

  • show router 9998 dhcp servers
  • show router 9998 dhcp6 servers
  • show router 9998 dhcp local-dhcp-server "suscriptores" summary
  • show router 9998 dhcp6 local-dhcp-server "suscriptores_v6" summary
  • show router 9998 dhcp local-dhcp-server "suscriptores" leases
  • show router 9998 dhcp6 local-dhcp-server "suscriptores_v6" leases
[gl:/configure]
A:admin@MASTER# show router 9998 dhcp servers

==================================================================
Overview of DHCP Servers
==================================================================
Active Leases:      8
Maximum Leases:     786432

Router              Server                           Admin State
------------------------------------------------------------------
Service: 9998       suscriptores                     inService
==================================================================
[gl:/configure]
A:admin@MASTER# show router 9998 dhcp6 servers

==================================================================
Overview of DHCP Servers
==================================================================
Active Leases:      8
Maximum Leases:     786432

Router              Server                           Admin State
------------------------------------------------------------------
Service: 9998       suscriptores_v6                  inService
==================================================================
A:admin@MASTER# show router 9998 dhcp local-dhcp-server "suscriptores" summary

===============================================================================
DHCP server suscriptores  router 9998
===============================================================================
Admin State            : inService
Operational State      : inService
Persistency State      : shutdown
User Data Base         : N/A
Use gateway IP address : enabled (scope subnet)
Use pool from client   : enabled
Send force-renewals    : disabled
Creation Origin        : manual
Lease Hold Time        : 0h0m0s
Lease Hold Time For    : N/A
User-ident             : mac-circuit-id

Failover Admin State   : outOfService
Failover Oper State    : shutdown
Failover Persist Key   : N/A
Administrative MCLT    : 0h10m0s
Operational MCLT       : 0h10m0s
Startup wait time      : 0h2m0s
Partner down delay     : 23h59m59s
  Ignore MCLT          : disabled

-------------------------------------------------------------------------------
Pool name : cgnat
-------------------------------------------------------------------------------
Failover Admin State   : inService
Failover Oper State    : normal
Failover Persist Key   : N/A
Administrative MCLT    : 0h10m0s
Operational MCLT       : 0h10m0s
Startup wait time      : 0h2m0s
Partner down delay     : 1h0m0s
  Ignore MCLT          : enabled
-------------------------------------------------------------------------------
Subnet                 Free     %    Stable   Declined Offered  Rem-pend Drain
-------------------------------------------------------------------------------
100.80.0.0/29      (L) 2        66%  1        0        0        0        N
                   (R) N/A           0        N/A      N/A      N/A      N

Totals for pool        2        66%  1        0        0        0
-------------------------------------------------------------------------------

-------------------------------------------------------------------------------
Pool name : one-to-one
-------------------------------------------------------------------------------
Failover Admin State   : inService
Failover Oper State    : normal
Failover Persist Key   : N/A
Administrative MCLT    : 0h10m0s
Operational MCLT       : 0h10m0s
Startup wait time      : 0h2m0s
Partner down delay     : 1h0m0s
  Ignore MCLT          : enabled
-------------------------------------------------------------------------------
Subnet                 Free     %    Stable   Declined Offered  Rem-pend Drain
-------------------------------------------------------------------------------
192.168.5.0/29     (L) 2        66%  1        0        0        0        N
                   (R) N/A           0        N/A      N/A      N/A      N

Totals for pool        2        66%  1        0        0        0
-------------------------------------------------------------------------------

Totals for server      4        66%  2        0        0        0

-------------------------------------------------------------------------------
Interface associations
Interface                        Admin
-------------------------------------------------------------------------------
loopback                         Up

-------------------------------------------------------------------------------
Local Address Assignment associations
Group interface                  Admin
-------------------------------------------------------------------------------
No associated firewall domains found.
===============================================================================
A:admin@MASTER# show router 9998 dhcp6 local-dhcp-server "suscriptores_v6" summary

===============================================================================
DHCP server suscriptores_v6  router 9998
===============================================================================
Admin State            : inService
Operational State      : inService
Persistency State      : shutdown
User Data Base         : N/A
Use Link Address       : enabled (scope pool)
Use pool from client   : enabled
Creation Origin        : manual
Lease Hold Time        : 0h0m0s
Lease Hold Time For    : N/A
User-ident             : duid
Interface-id-mapping   : disabled
Ignore-rapid-commit    : disabled
Allow-lease-query      : disabled
Auto-provisioned       : false

Failover Admin State   : outOfService
Failover Oper State    : shutdown
Failover Persist Key   : N/A
Administrative MCLT    : 0h10m0s
Operational MCLT       : 0h10m0s
Startup wait time      : 0h2m0s
Partner down delay     : 23h59m59s
  Ignore MCLT          : disabled

-------------------------------------------------------------------------------
Pool name : IPv6
-------------------------------------------------------------------------------
Failover Admin State   : inService
Failover Oper State    : normal
Failover Persist Key   : N/A
Administrative MCLT    : 0h10m0s
Operational MCLT       : 0h10m0s
Startup wait time      : 0h2m0s
Partner down delay     : 1h0m0s
  Ignore MCLT          : enabled
-------------------------------------------------------------------------------
Prefix
                                     Stable   Declined Advert   Rem-pend Drain
-------------------------------------------------------------------------------
2001:db8:100::/56
                                (L)  2        0        0        0        N
2001:db8:200::/48
                                (L)  2        0        0        0        N

Totals for pool                      4        0        0        0
-------------------------------------------------------------------------------

-------------------------------------------------------------------------------
Pool name : IPv6-dual-stack
-------------------------------------------------------------------------------
Failover Admin State   : inService
Failover Oper State    : normal
Failover Persist Key   : N/A
Administrative MCLT    : 0h10m0s
Operational MCLT       : 0h10m0s
Startup wait time      : 0h2m0s
Partner down delay     : 1h0m0s
  Ignore MCLT          : enabled
-------------------------------------------------------------------------------
Prefix
                                     Stable   Declined Advert   Rem-pend Drain
-------------------------------------------------------------------------------
2001:db8:cccc::/56
                                (L)  1        0        0        0        N
2001:db8:dddd::/48
                                (L)  1        0        0        0        N

Totals for pool                      2        0        0        0
-------------------------------------------------------------------------------

Totals for server                    6        0        0        0

-------------------------------------------------------------------------------
Interface associations
Interface                        Admin
-------------------------------------------------------------------------------
loopback                         Up

-------------------------------------------------------------------------------
Local Address Assignment associations
Group interface                  Admin
-------------------------------------------------------------------------------
No associated firewall domains found.
===============================================================================
[gl:/configure]
A:admin@MASTER# show router 9998 dhcp local-dhcp-server "suscriptores" leases

===============================================================================
Leases for DHCP server suscriptores router 9998
===============================================================================
IP Address      Lease State       Mac Address       Remaining   Clnt  Fail
  PPP user name/Opt82 Circuit Id                    LifeTime    Type  Ctrl
  User-db/Sticky-lease Hostname
-------------------------------------------------------------------------------
100.80.0.2      stable            00:d0:f6:01:01:02 5476d9h40m  dhcp  local

192.168.5.2     stable            00:d0:f6:01:01:03 5476d9h40m  dhcp  local

-------------------------------------------------------------------------------
2 leases found
===============================================================================
[gl:/configure]
A:admin@MASTER# show router 9998 dhcp6 local-dhcp-server "suscriptores_v6" leases

===============================================================================
Leases for DHCPv6 server suscriptores_v6
===============================================================================
IP Address/Prefix                          Lease State       Remaining   Fail
  Link-local Address                                         LifeTime    Ctrl
-------------------------------------------------------------------------------
2001:db8:100::2/128
  fe80::2d0:f6ff:fe01:101                  stable            1d3h40m     local
2001:db8:100::3/128
  fe80::a877:b9ac:64af:934                 stable            1d4h2m      local
2001:db8:200:1::/64
  fe80::2d0:f6ff:fe01:101                  stable            1d3h40m     local
2001:db8:200:2::/64
  fe80::a877:b9ac:64af:934                 stable            1d4h2m      local
2001:db8:cccc::1/128
  fe80::2d0:f6ff:fe01:102                  stable            1d3h40m     local
2001:db8:dddd::/64
  fe80::2d0:f6ff:fe01:102                  stable            1d3h40m     local
-------------------------------------------------------------------------------
6 leases found
===============================================================================

7.7 Pruebas IPoE y PPP​

Verifica las sesiones activas de IPoE y PPP dentro del servicio 9998.

[gl:/configure]
A:admin@MASTER# show service id 9998 ipoe session

===============================================================================
IPoE sessions for svc-id 9998
===============================================================================
Sap Id                           Mac Address         Up Time         MC-Stdby
    Subscriber-Id
        [CircuitID] | [RemoteID]
-------------------------------------------------------------------------------
[1/1/c2/1:50.150]                00:d0:f6:01:01:01   0d 03:14:55
    ONT-001
[1/1/c2/1:51.200]                00:d0:f6:01:01:02   0d 03:15:19
    ONT-001
[1/1/c2/1:52.300]                00:d0:f6:01:01:03   0d 03:15:19
    ONT-001
-------------------------------------------------------------------------------
CID | RID displayed when included in session-key
Number of sessions : 3
===============================================================================
[gl:/configure]
A:admin@MASTER# show service id 9998 ppp session

===============================================================================
PPP sessions for service 9998
===============================================================================
User-Name
  Descr.
           Up Time       Type  Termination     IP/L2TP-Id/Interface-Id MC-Stdby
-------------------------------------------------------------------------------
test@test.com
  svc:9998 sap:[1/1/c2/1:50.150] mac:00:d0:f6:01:01:04 sid:1
           0d 02:03:48   oE    local           A8:77:B9:AC:64:AF:09:34
-------------------------------------------------------------------------------
No. of PPP sessions: 1
===============================================================================
